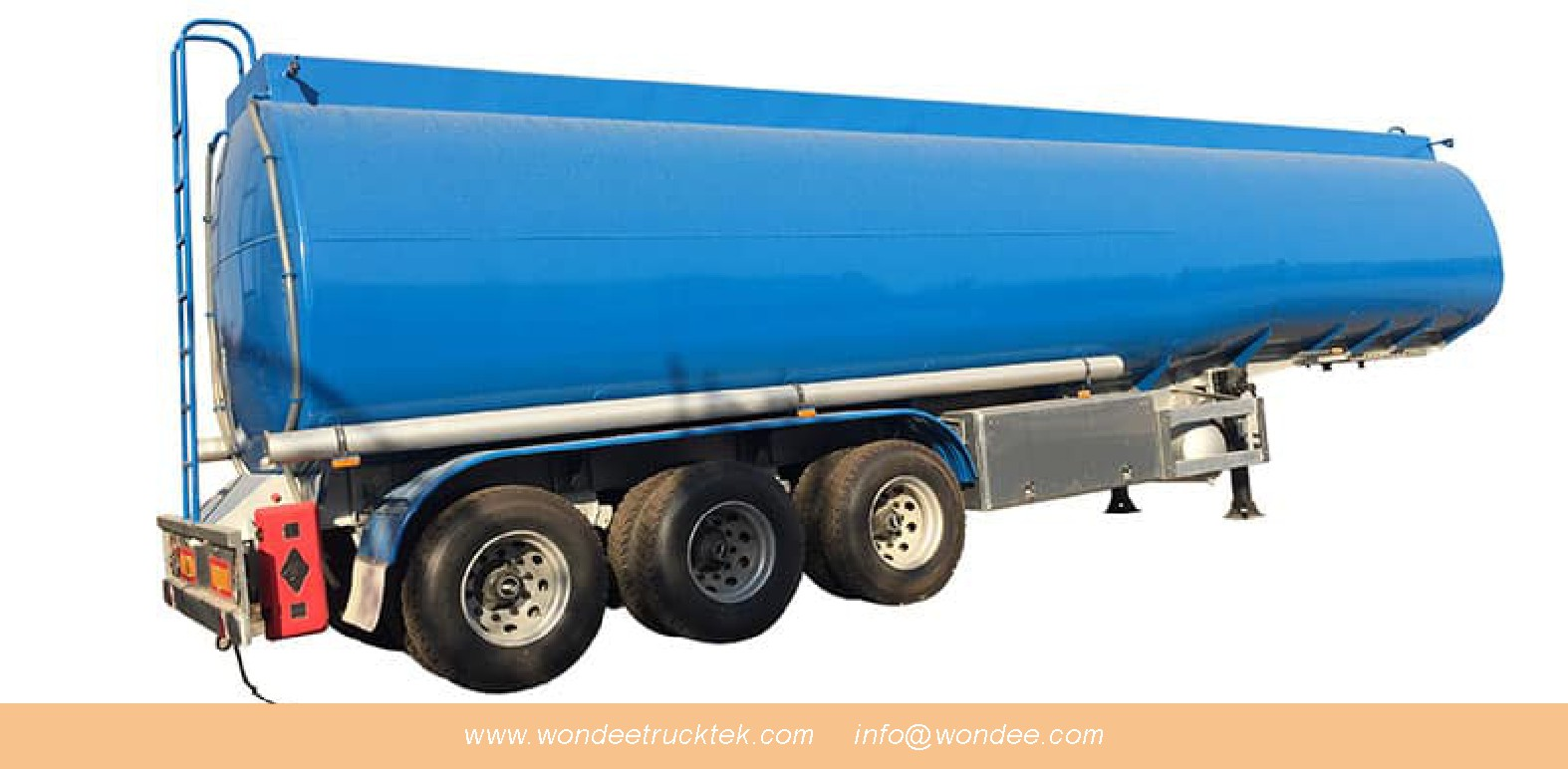

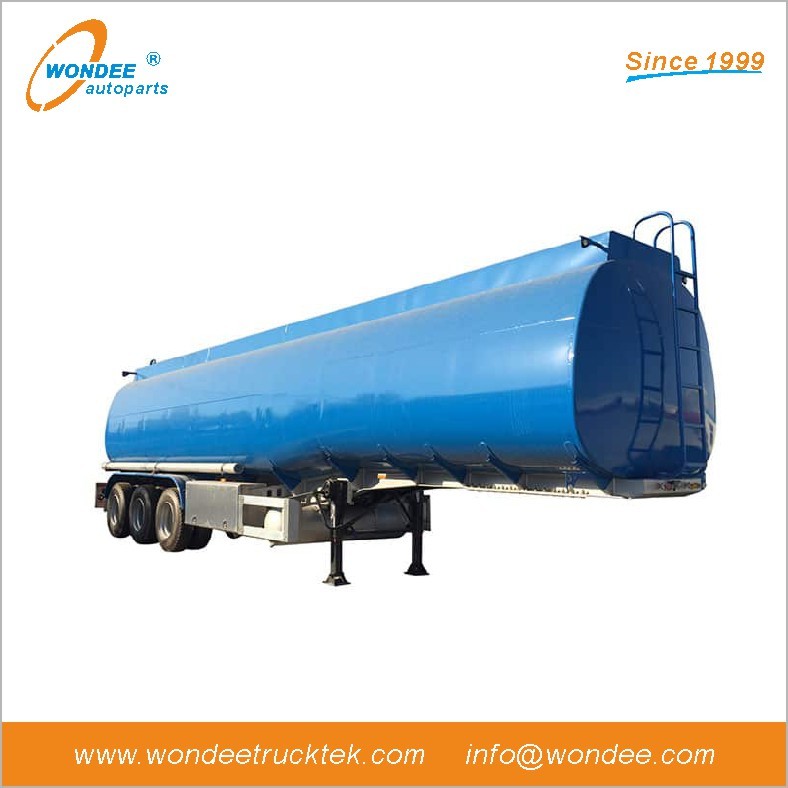

WONDEE 3-axle 50 T 45CBM Fuel Tanker Semi Trailer
Loading Capacity : 50T Axle : 2/3/4 Axle Dimension : 12500x2500x4000mm Applications: Fuel tanker semi trailer for Diesel, Gasoline, Chemical Liquid transport
Product Details
Product Specifications:
|
Dimensions |
12500x2500x4000mm |
|
Loading Capacity |
50 Ton; 45cbm |
|
Main Beam |
Height 500mm, |
|
Upper Thickness 12mm, |
|
|
Middle Thickness 8mm, |
|
|
Down Thickness 14mm |
|
|
Tank Body |
Carbon Steel, Thickness 4mm |
|
Forehead & back head |
Carbon Steel, Thickness 5mm |
|
Breather Valve |
Yes |
|
Axle Capacity Load |
13 Ton, 3-axles |
|
BPW / FUWA / WONDEE Axle or As Request |
|
|
Suspension System |
Mechanical Suspension, Air Suspension, Bogie Suspension |
|
BPW / FUWA / WONDEE or As Request |
|
|
Wheel Rim |
Steel Wheel Rim 8.5-20/ 8.0-20/ 8.25-22.5/ 9.0-22.5 |
|
WONDEE Brand or As Request |
|
|
Tire |
12.00R20 /11.00R20/12R22.5 |
|
Triangle, Chengshan, Doublestar, Linglong or As Request |
|
|
King Pin |
2.0 inch (50mm)/3.5 inch (90mm) |
|
JOST, WONDEE or As Request |
|
|
Landing Gear |
28Ton/32Ton |
|
JOST / FUWA, WONDEE or As Request |
|
|
Brake System |
WABCO Valve with Air Chamber T3030 |
|
ABS |
As Request |
|
Lights |
LED/ Turning Light, Side Marker Light, Tail Light, etc |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Spare Tire Carriers |
As Request |
|
Other Accessories |
Tool Box, Fire Extinguisher |
Vehicle General Information of fuel tanker semi trailer:
|
Vehicle Use |
This type of tanker semi trailer is mainly used for insulation transportation of high melting point chemical liquids such as asphalt, sulfur, phenol, etc. Transport media include gasoline, diesel, lubricating oil, coal tar, crude oil, kerosene, alcohol, aldehyde, benzene, ether, vegetable oil, edible oil and some fresh liquids, such as milk, beer, etc |
|
Loading Capacity |
40Ton~ 60Ton; 30cbm~60cbm |
|
Main Beam |
Q345B or T700 Strong Main Beam, |
|
Height 500mm, |
|
|
Upper Thickness 12~18mm, |
|
|
Middle Thickness 6~12mm, |
|
|
Down Thickness 14~20mm |
|
|
Tank Body |
Carbon Steel Q235 / Aluminum Alloy/ Stainless Steel |
|
Thickness 3mm~6mm |
|
|
Forehead & back head |
Q235 / Aluminium |
|
Thickness 4mm ~ 7mm |
|
|
Breather Valve |
Yes |
|
Axle Capacity Load |
13Ton / 16Ton |
|
BPW / FUWA / WONDEE Axle or As Request |
|
|
Suspension System |
Mechanical Suspension, Air Suspension, Bogie Suspension |
|
BPW / FUWA / WONDEE or As Request |
|
|
Wheel Rim |
Steel Wheel Rim 8.5-20/ 8.0-20/ 8.25-22.5/ 9.0-22.5 |
|
WONDEE Brand or As Request |
|
|
Tire |
12.00R20 /11.00R20/12R22.5 |
|
Triangle, Chengshan, Doublestar, Linglong or As Request |
|
|
King Pin |
2.0 inch (50mm)/3.5 inch (90mm) |
|
JOST, WONDEE or As Request |
|
|
Landing Gear |
28Ton / 32Ton |
|
JOST / FUWA, WONDEE or As Request |
|
|
Brake System |
WABCO Valve with Air Chamber T3030 |
|
ABS |
As Request |
|
Lights |
LED/ Turning Light, Side Marker Light, Tail Light, etc |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Spare Tire Carriers |
As Request |
|
Other Accessories |
Tool Box, Fire Extinguisher |
Fuel tanker semi trailer product details:
Optional Spare parts
● The axle can be FUWA,BPW, WONDEE and other brand.
● Lifting axle is optional
● Air Spring suspension
● Aluminium ally rim
● Tyres with 11R22.5;11.00R20;12.00R20;315/80R22.5;385/65R22.5
WONDEE Other types Semi Trailers:
Skeleton(skeletal)semi trailer, Flatbed semi trailer , Fence(sidewall) semi trailer, low bed semi trailer, dump semi trailer, fuel tanker semi trailer, bulk powder semi trailer, container semi trailer, etc.
Competitive Advantage:
1) Our company produces flat semitrailer divided into flat, concave beam and tire exposed structure, beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is I-shaped, has high anti breaking strength and bearing capacity.
2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.
3) Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.
4) The key parts adopt the world's top technology products
5) Based on strong technical support and top level technology make the trucks with high quality and more reliable
6) Competitive price, cost-effective
7) Quick and efficient spare parts supply bring you more convenient
8) Fast delivery time, we can arrange production according to your needs exactly and Quickly
9) Professional import and export dealing procedure, make customs clearance more high efficiency
Ocean Shipping for semi trailers
The main products include semi trailers, leaf springs , spring steel flat bar, mechanical suspension, air suspension, bogie suspension, air bag, semi trailer axle, landing gear, brake drum, brake shoe, brake lining, mudguard, slack adjuster, air tank, coupling, emergency relay valve, brake hose, turntable, wheel rim, bolts, fifth wheel, king pin, air chamber, twist lock, jack, drawbar and so on.
