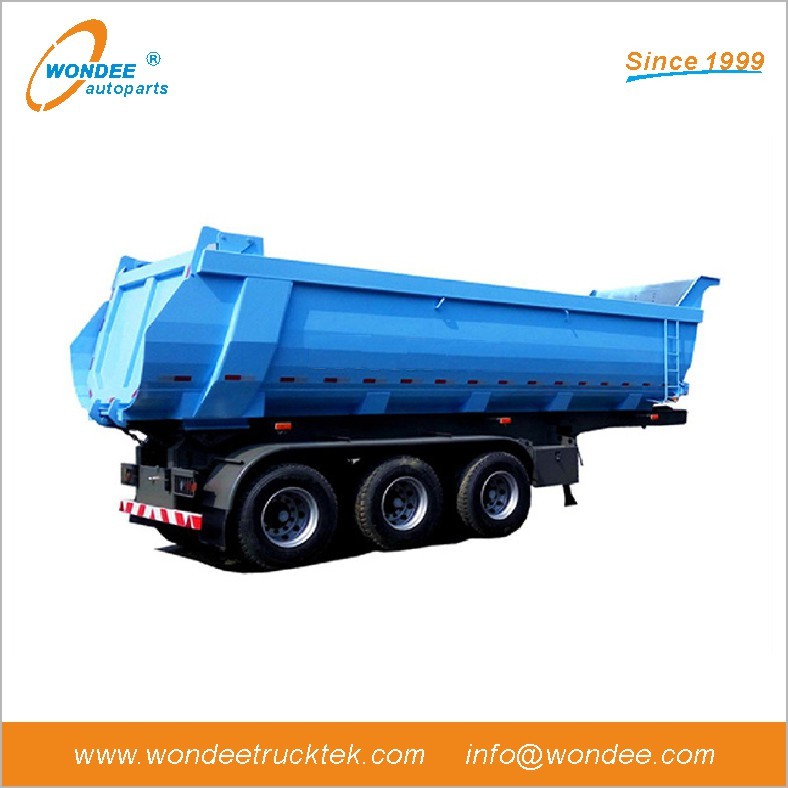

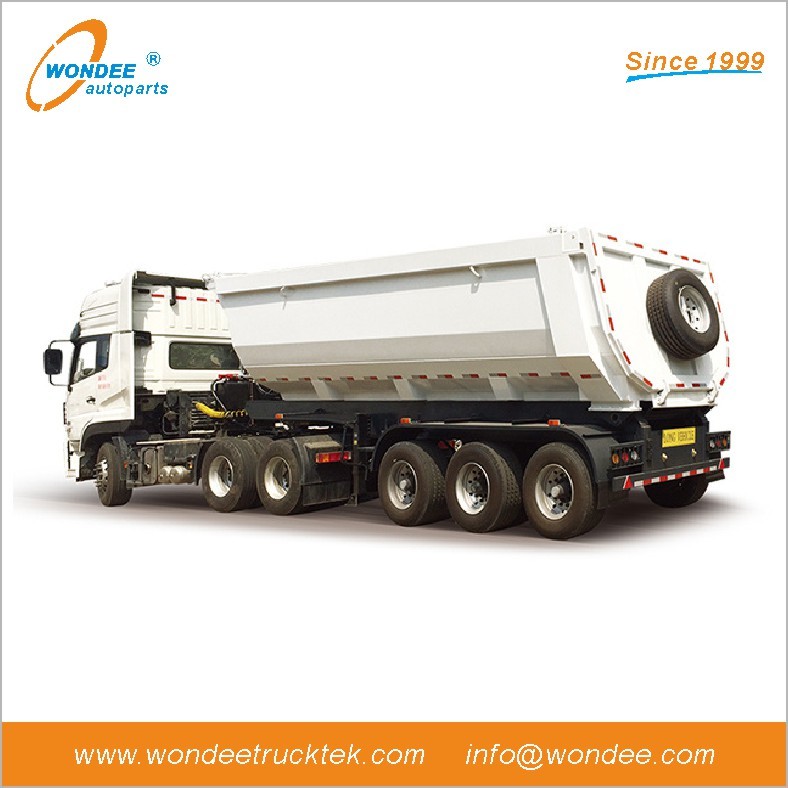

WONDEE 4-axle 100T Dump Semi Trailer
Loading Capacity : 100T Axle : 2/3/4 Axle Dimension : 11000x2550x1800mm, U Haul Shape Applications: Dump semi trailer for Coal, sand, slag, mineral waste residue and other materials transport.
Product Details
Product Specifications:
|
Dimensions |
11000x2550x1800mm, U Haul Shape |
|
Loading Capacity |
100T |
|
Main Beam |
Height:500mm, |
|
Upper Thickness 20mm |
|
|
Middle Thickness Double 10mm |
|
|
Down Thickness 20mm |
|
|
Side Wall |
Height: 1800mm |
|
Bottom/Side |
Thickness: 8mm/ 6mm |
|
Hydraulic Cylinder |
HYVA Brand, Local one or As Request |
|
Dumping side |
Rear Dumping |
|
Axle Weight Load |
16 Ton, 4-axles |
|
BPW / FUWA / WONDEE Axle or As Request |
|
|
Suspension System |
Mechanical Suspension, Air Suspension, Boogie Suspension |
|
BPW / FUWA / WONDEE or As Request |
|
|
Wheel Rim |
8.25*22.5/ 9.00*22.5 |
|
WONDEE Brand or As Request |
|
|
Tire |
11R22.5, 12R22.5 |
|
Triangle, Chengshan, Doublecoin, Linglong or As Request |
|
|
King Pin |
2.0 inch (50mm)/3.5 inch (90mm) |
|
JOST, WONDEE or As Request |
|
|
Landing Gear |
28Ton/32Ton |
|
JOST / FUWA, WONDEE or As Request |
|
|
Brake System |
WABCO Valve with Air Chamber T3030 |
|
ABS |
As Request |
|
Lights |
Turning Light, Side Marker Light, Tail Light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool Box |
As Request |
|
Spare Tire Carriers |
As Request |
|
Painting Color |
Color optional |
|
Common Paint / Polyurethane paint |
Vehicle General Information of dump semi trailer:
|
Vehicle Use |
Mainly used to transport slags, gravels, coal, mineral ores, building material, construction materials, stone, clay, loose cargo transport |
|
Advantage |
The vehicle body is scientifically designed according to loading requirements to reduce self weight, ensure the optimal structure for cargo loading and unloading, increase payload, and improve loading and transportation efficiency. |
|
Vehicles can be designed for rear self dumping or side dumping according to different loading requirements, with good loading capacity. |
|
|
Loading Capacity |
30Ton ~ 100Ton, 30m3 ~ 80m3 |
|
Main Beam |
Q345B/T700 Strong Main Beam |
|
Height:500mm, |
|
|
Upper Thickness 14~18mm, |
|
|
Middle Thickness 10~12mm, |
|
|
Down Thickness 16~20mm |
|
|
Floor |
Material Q345B, |
|
Thickness 4~8mm |
|
|
Side Wall |
Thickness 3~6mm |
|
Hydraulic Cylinder |
HYVA Brand, China Brand or As Request |
|
Dumping side |
Side /Rear Dumping |
|
Axle Weight Load |
13Ton/16Ton/20Ton |
|
BPW / FUWA / WONDEE Axle or As Request |
|
|
Suspension System |
Mechanical Suspension, Air Suspension, Boogie Suspension |
|
BPW / FUWA / WONDEE or As Request |
|
|
Wheel Rim |
8.25*22.5/ 9.00*22.5 |
|
WONDEE Brand or As Request |
|
|
Tire |
11R22.5, 12R22.5 |
|
Triangle, Chengshan, Doublecoin, Linglong or As Request |
|
|
King Pin |
2.0 inch (50mm)/3.5 inch (90mm) |
|
JOST, WONDEE or As Request |
|
|
Landing Gear |
28Ton / 32Ton |
|
JOST / FUWA, WONDEE or As Request |
|
|
Brake System |
WABCO Valve with Air Chamber T3030 |
|
ABS |
As Request |
|
Lights |
Turning Light, Side Marker Light, Tail Light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool Box |
As Request |
|
Spare Tire Carriers |
As Request |
|
Painting Color |
Color optional |
|
Common Paint / Polyurethane paint |
Dump semi trailer product details:
Optional Spare parts
● The axle can be FUWA,BPW, WONDEE and other brand.
● Lifting axle is optional
● Air Spring suspension
● Aluminium ally rim
● Tyres with 11R22.5;11.00R20;12.00R20;315/80R22.5;385/65R22.5

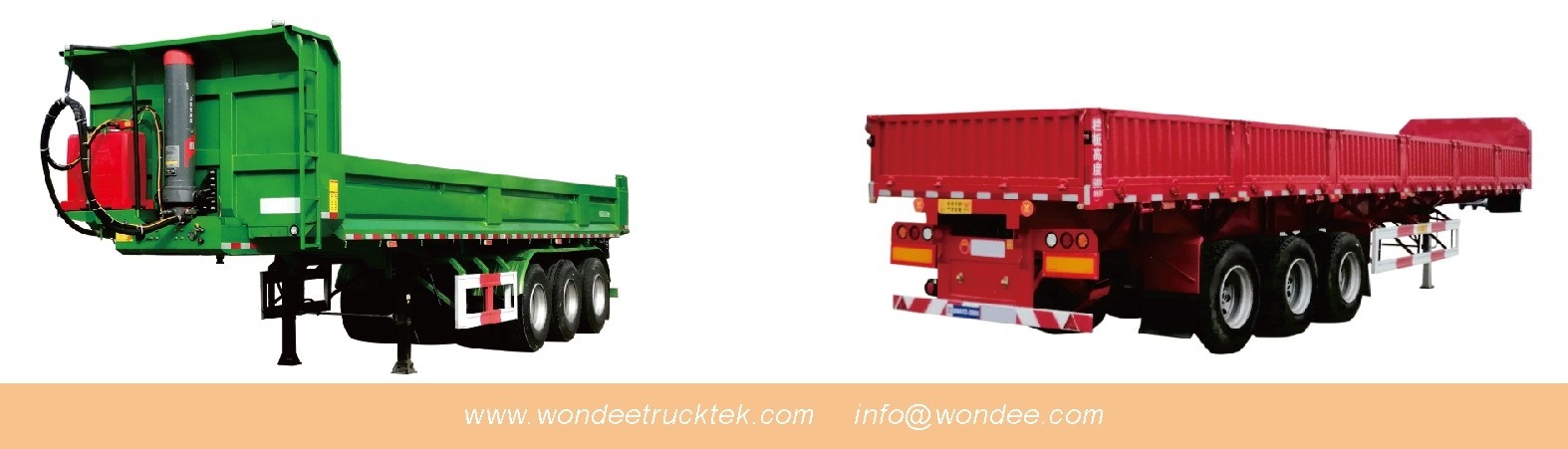

WONDEE Other types Semi Trailers:
Skeleton(skeletal)semi trailer, Flatbed semi trailer , Fence(sidewall) semi trailer, low bed semi trailer, dump semi trailer, fuel tanker semi trailer, bulk powder semi trailer, container semi trailer, etc.
Competitive Advantage:
1) Our company produces flat semitrailer divided into flat, concave beam and tire exposed structure, beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is I-shaped, has high anti breaking strength and bearing capacity.
2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.
3) Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.
4) The key parts adopt the world's top technology products
5) Based on strong technical support and top level technology make the trucks with high quality and more reliable
6) Competitive price, cost-effective
7) Quick and efficient spare parts supply bring you more convenient
8) Fast delivery time, we can arrange production according to your needs exactly and Quickly
9) Professional import and export dealing procedure, make customs clearance more high efficiency
Ocean Shipping for semi trailers
The main products include semi trailers, leaf springs , spring steel flat bar, mechanical suspension, air suspension, bogie suspension, air bag, semi trailer axle, landing gear, brake drum, brake shoe, brake lining, mudguard, slack adjuster, air tank, coupling, emergency relay valve, brake hose, turntable, wheel rim, bolts, fifth wheel, king pin, air chamber, twist lock, jack, drawbar and so on.
