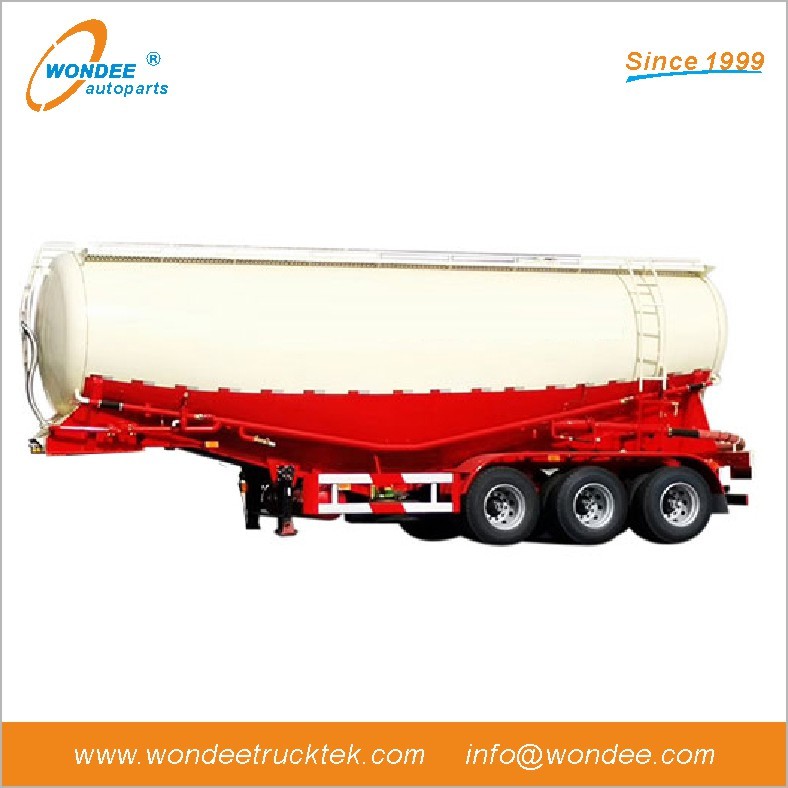

WONDEE 3-axle 40T 35CBM Bulk Powder Tanker Semi Trailer
Loading Capacity : 50T Axle : 2/3/4 Axle Dimension : 9800x2500x3980mm Applications: Bulk powder tanker semi trailer for coal ash, cement, lime powder, wheat powder, etc transport.
Product Details
Product Specifications:
|
Dimensions |
9800x2500x3980mm, |
|
Main Beam |
Height 500mm, |
|
Upper Thickness 12mm, |
|
|
Middle Thickness 6mm, |
|
|
Down Thickness 14mm |
|
|
Loading Capacity |
30~40T, 27cbm~35cbm |
|
Tank Body |
Thickness 4mm |
|
Forehead & backhead |
Thickness 5mm |
|
Compartment |
1 Compartment/ V type |
|
Manholes |
2/ 500mm carbon steel |
|
Discharge valve |
3”/ 4” disc valve |
|
Discharge pipe |
3”/ 4” seamless steel tube |
|
Outlet pipe |
3”/ 4” rubber hose, 8m |
|
Diesel Engine |
Weichai / Huafeng / Tianhe 4100/4102/4105 or As Request |
|
Compressor |
Bohai / Fuda 10.0/ 12.0 or As Request |
|
Axle Capacity Load |
13 Ton |
|
BPW / FUWA / WONDEE Axle or As Request |
|
|
Suspension System |
Mechanical Suspension, Air Suspension, Bogie Suspension |
|
BPW / FUWA / WONDEE or As Request |
|
|
Wheel Rim |
Steel Wheel Rim 8.5-20/8.0-20/8.25-22.5/9.0-22.5 |
|
WONDEE Brand or As Request |
|
|
Tire |
12.00R20 /110.00R20/12R22.5, |
|
Triangle, Chengshan, Doublestar, Linglong or As Request |
|
|
King Pin |
2.0 inch (50mm)/3.5 inch (90mm) |
|
JOST, WONDEE or As Request |
|
|
Landing Gear |
28Ton/32Ton |
|
JOST / FUWA, WONDEE or As Request |
|
|
Brake System |
Drum Brake / Disc Brake |
|
WABCO Valve with Air Chamber T3030 |
|
|
ABS |
As Request |
|
Lights |
LED/ Turning Light, Side Marker Light, Tail Light, etc As Request |
|
Voltage |
24V |
|
Receptacle Plug |
7 ways (7 wire harness) |
|
Spare Tire Carriers |
Customer optional |
|
Other Accessories |
Tool Box, Ladder, Mudguard |

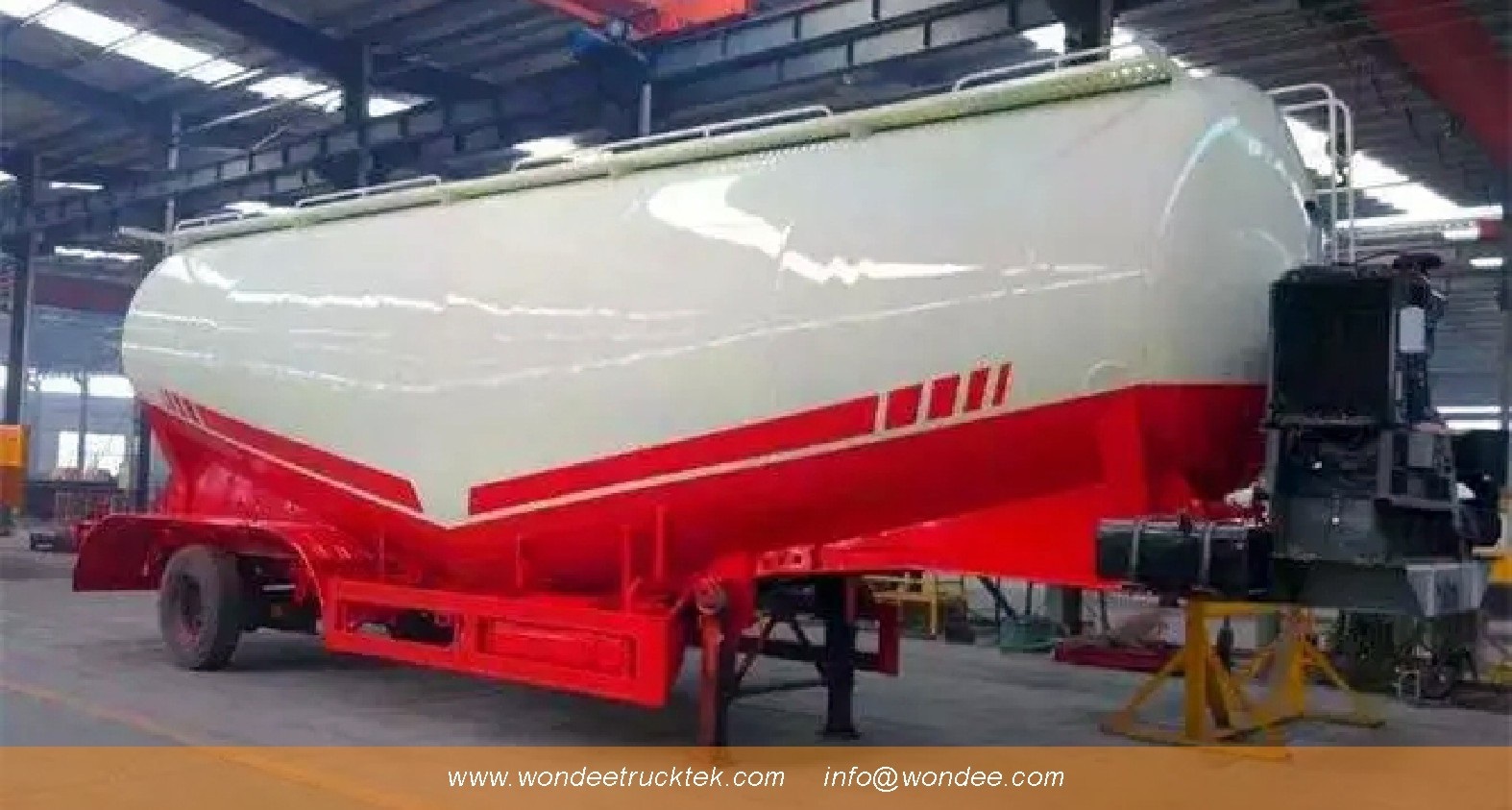

Vehicle General Information of bulk powder tanker semi trailer:
|
Vehicle Use |
This type of tank semi-trailer is suitable for safe and convenient transportation of powder particles, dry powder materials, coal ash, fly ash, bulk cement concrete, lime powder, mineral powder, wheat powder, etc |
|
Advantage |
The scientific structural design maintains the loading and unloading speed at 1.4T/min, greatly improving the utilization rate of tank capacity and reducing the residual ash powder rate to 0.2%. Corresponding designs can be made for different loading environment conditions. |
|
Main Beam |
Q345B /T610 /T700 Strong Main Beam, |
|
Height 500mm, |
|
|
Upper Thickness 12~18mm, |
|
|
Middle Thickness 6~12mm, |
|
|
Down Thickness 14~20mm |
|
|
Loading Capacity |
30Ton~ 70Ton, 30cbm~70cbm |
|
Tank Body |
Q235/ Q700L / Aluminium / Stainless Steel 304 |
|
Thickness 4mm~6mm |
|
|
Forehead & backhead |
Q235 / Q345/ Aluminium / Stainless Steel 304 |
|
Thickness 5mm ~7mm |
|
|
Compartment |
1 or 2 Compartments/ V or W type |
|
Manholes |
500mm carbon steel or aluminum alloy manhole |
|
Discharge valve |
3”/ 4” disc valve |
|
Discharge pipe |
3”/ 4” seamless steel tube |
|
Outlet pipe |
3”/ 4” rubber hose, 6~8m As Request |
|

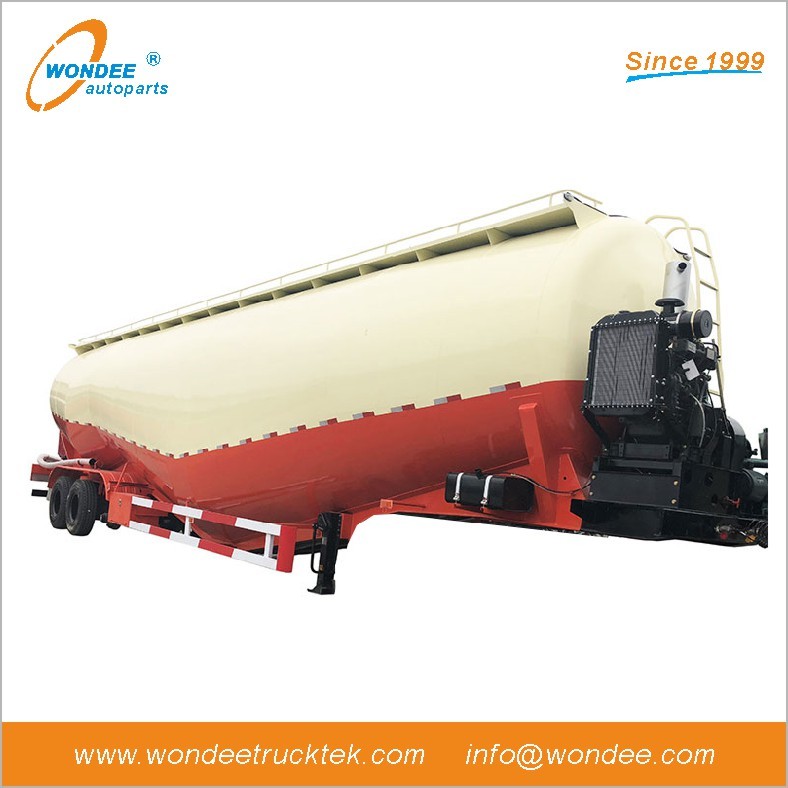

Diesel Engine |
Weichai / Huafeng / Tianhe 4100/4102/4105 or As Request |
|
Compressor |
Bohai / Fuda 10.0/ 12.0 or As Request |
|
Axle Capacity Load |
13 Ton/ 16 Ton |
|
BPW / FUWA / WONDEE Axle or As Request |
|
|
Suspension System |
Mechanical Suspension, Air Suspension, Bogie Suspension |
|
BPW / FUWA / WONDEE or As Request |
|
|
Wheel Rim |
8.5-20/8.0-20/8.25-22.5/9.0-22.5 |
|
WONDEE Brand or As Request |
|
|
Tire |
12.00R20 /110.00R20/12R22.5, |
|
Triangle, Chengshan, Doublestar, Linglong or As Request |
|
|
King Pin |
2.0 inch (50mm)/3.5 inch (90mm) |
|
JOST, WONDEE or As Request |
|
|
Landing Gear |
28T |
|
JOST / FUWA, WONDEE or As Request |
|
|
Brake System |
Drum Brake / Disc Brake |
|
WABCO Valve with Air Chamber T3030 |
|
|
ABS |
Customer optional |
|
Lights |
LED/ Turning Light, Side Marker Light, Tail Light, etc As Request |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool Box |
As Request |
|
Spare Tire Carriers |
As Request |
Fuel tanker semi trailer product details:
Optional Spare parts
● The axle can be FUWA,BPW, WONDEE and other brand.
● Lifting axle is optional
● Air Spring suspension
● Aluminium ally rim
● Tyres with 11R22.5;11.00R20;12.00R20;315/80R22.5;385/65R22.5
WONDEE Other types Semi Trailers:
Skeleton(skeletal)semi trailer, Flatbed semi trailer , Fence(sidewall) semi trailer, low bed semi trailer, dump semi trailer, fuel tanker semi trailer, bulk powder semi trailer, container semi trailer, etc.
Competitive Advantage:
1) Our company produces flat semitrailer divided into flat, concave beam and tire exposed structure, beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is I-shaped, has high anti breaking strength and bearing capacity.
2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.
3) Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.
4) The key parts adopt the world's top technology products
5) Based on strong technical support and top level technology make the trucks with high quality and more reliable
6) Competitive price, cost-effective
7) Quick and efficient spare parts supply bring you more convenient
8) Fast delivery time, we can arrange production according to your needs exactly and Quickly
9) Professional import and export dealing procedure, make customs clearance more high efficiency
Ocean Shipping for semi trailers
The main products include semi trailers, leaf springs , spring steel flat bar, mechanical suspension, air suspension, bogie suspension, air bag, semi trailer axle, landing gear, brake drum, brake shoe, brake lining, mudguard, slack adjuster, air tank, coupling, emergency relay valve, brake hose, turntable, wheel rim, bolts, fifth wheel, king pin, air chamber, twist lock, jack, drawbar and so on.
