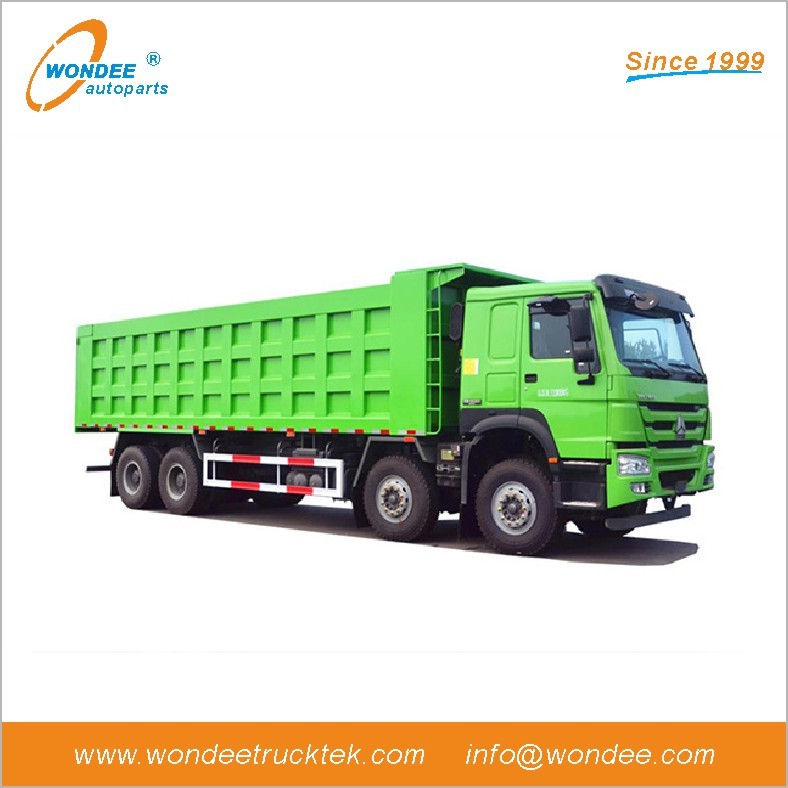

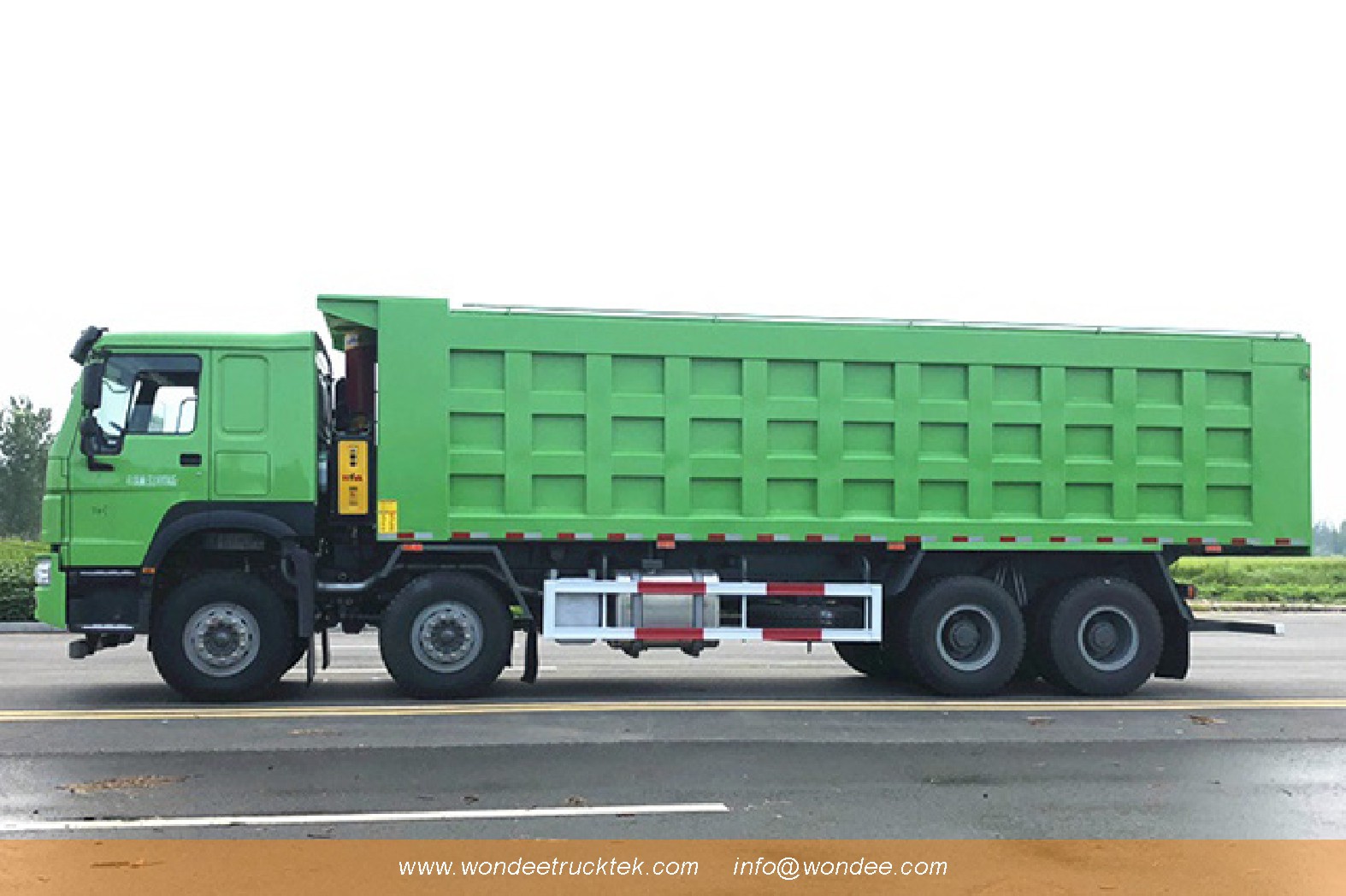

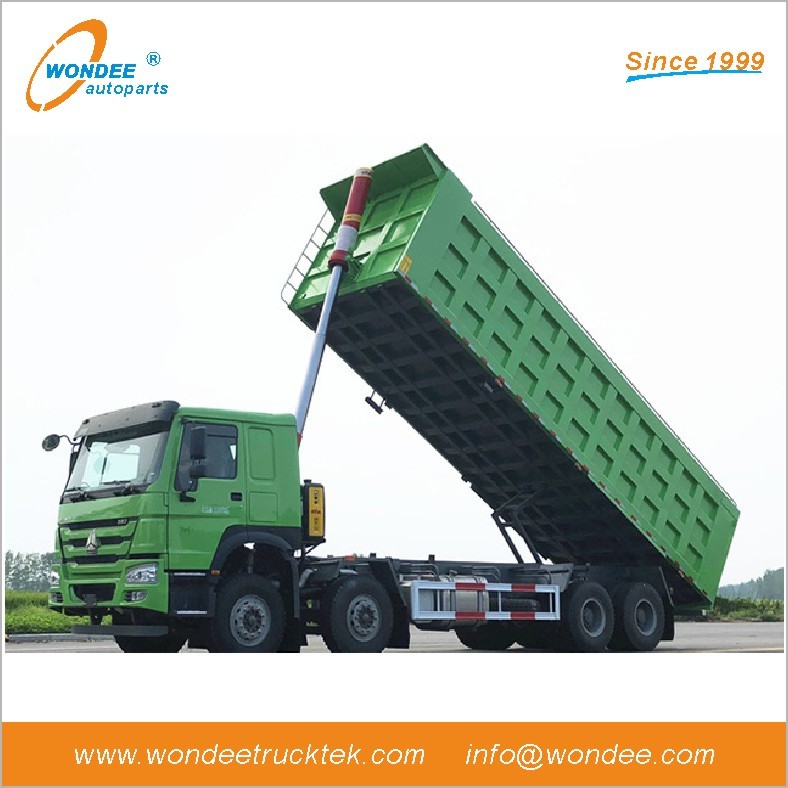

SINOTRUK HOWO 8x4 Dump Truck with 50T Loading Capacity
Engine : 371HP/420HP Chassis model : ZZ3317N4667 Capacity : 50T/34CBM
Product Details
Technical Specifications
Vehicle Overview
|
Make |
Sinotruk |
|
|||||
|
Vehicle model |
SGZ3310ZZ3W46 |
|
|||||
|
Vehicle type |
Dump truck (tipper truck) |
|
|||||
|
Manufacturer |
Sinotruk |
|
|||||
|
Country |
China |
|
|||||
|
Manufacturer's location |
China |
|
|||||
|
Vehicle chassis |
ZZ3317N4667 |
|
|||||
|
S/N |
Engine Model |
Engine Displacement |
Engine Power |
Engine Manufacturer |
Emission |
||
|
1 |
WD615.69 |
9726 cc |
247 kw (336 hp) |
Sinotruk |
Euro 2 |
||
|
2 |
WD615.47 |
9726 cc |
273 kw (371 hp) |
Sinotruk |
Euro 2 |
||
|
3 |
D12.42-20 |
11596cc |
309 kw (420hp) |
Sinotruk |
Euro 2 |
||
|
4 |
D10.34-40 |
9726 cc |
249 kw (340 hp) |
Sinotruk |
Euro 4 |
||
|
5 |
D10.38-40 |
9726 cc |
276 kw (380 hp) |
Sinotruk |
Euro 4 |
||
|
6 |
D12.42-40 |
11596 cc |
309 kw (420 hp) |
Sinotruk |
Euro 4 |
||
|
General Engine Specifications |
||
|
Fuel |
diesel fuel |
|
|
Diesel 4-stroke diesel engine 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Environmental standards compliance |
Euro 2/3/4/5 |
|
|
Overall Dimensions |
||
|
Overall length (mm) |
11150 |
|
|
Overall width (mm) |
2500 |
|
|
Overall height (mm) |
3450 |
|
|
Cargo Body Dimensions |
||
|
Cargo body length (mm) |
8200 |
|
|
Cargo body width (mm) |
1500/1800 or customized |
|
|
Cargo body height (mm) |
2300 |
|
|
Weights |
||
|
Curb weight of the Chinese dump truck (kg) |
16910 |
|
|
Axle load distribution (kg) |
6500/7000/17500 (tandem axle) |
|
|
Wheel Base and Track |
||
|
Wheelbase (mm) |
1800+4600+1350 |
|
|
Front track (mm) |
2022/2022 |
|
|
Rear track (mm) |
1830/1830 |
|
|
Front and Rear Overhang |
||
|
Front overhang (mm) |
1500 |
|
|
Rear overhang (mm) |
1900 |
|
|
Angle of Approach and Departure |
||
|
Angle of approach (deg.) |
19 |
|
|
Angle of departure (deg.) |
24 |
|
|
Tires and Wheels |
||
|
Number of axles |
4 |
|
|
Number of tires |
12+1 |
|
|
Tires dimension |
11.00R20, 12.00R20 18PR, 12.00R24, 12R22.5, 315/8022.5,13R22.5 or optional |
|
|
Other Specification |
||
|
Max. speed |
80 |
|
|
Number of axles |
4 |
|
|
Number of tires |
12+1 |
|
|
Tires dimension |
11.00R20, 12.00R20 18PR, 12.00R24, 12R22.5, 315/8022.5,13R22.5 or optional |
|
|
Cab seating capacity |
2 |
|
|
Steering |
ZF power steering, model ZF8118, hydraulic steering with power assistance |
|
|
Transmission |
HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
|
|
Steel Axle |
HF9, 2x9000 KGS Steering with double T-cross section beam |
|
|
Driving Axle |
HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:5.73, 4.8 is optional. |
|
|
Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members |
|
|
Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake ABS:optional |
|
|
Leaf springs numbers |
Front/Rear: 11 / 11 / 12 Front steering axle suspension:11 peaces semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear driving axle suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
|
|
Fuel tank |
Aluminum alloy tank 300L or 400L |
|
