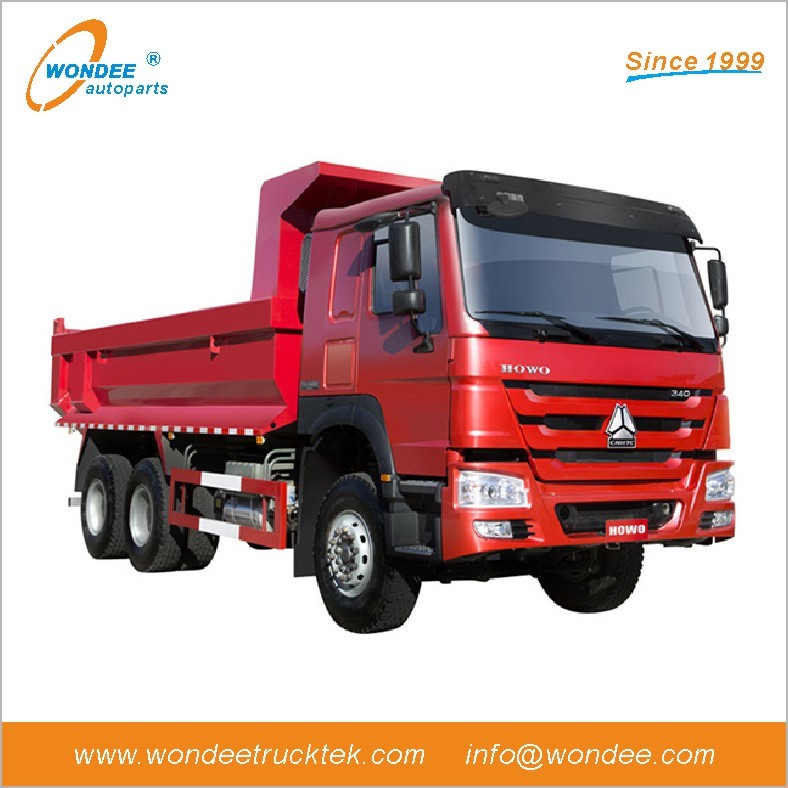

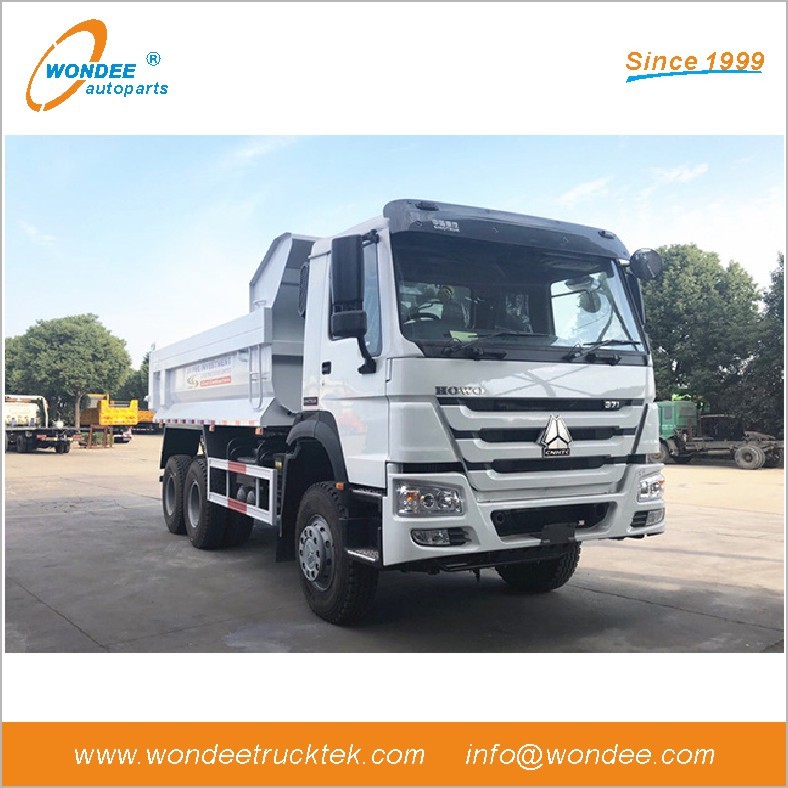

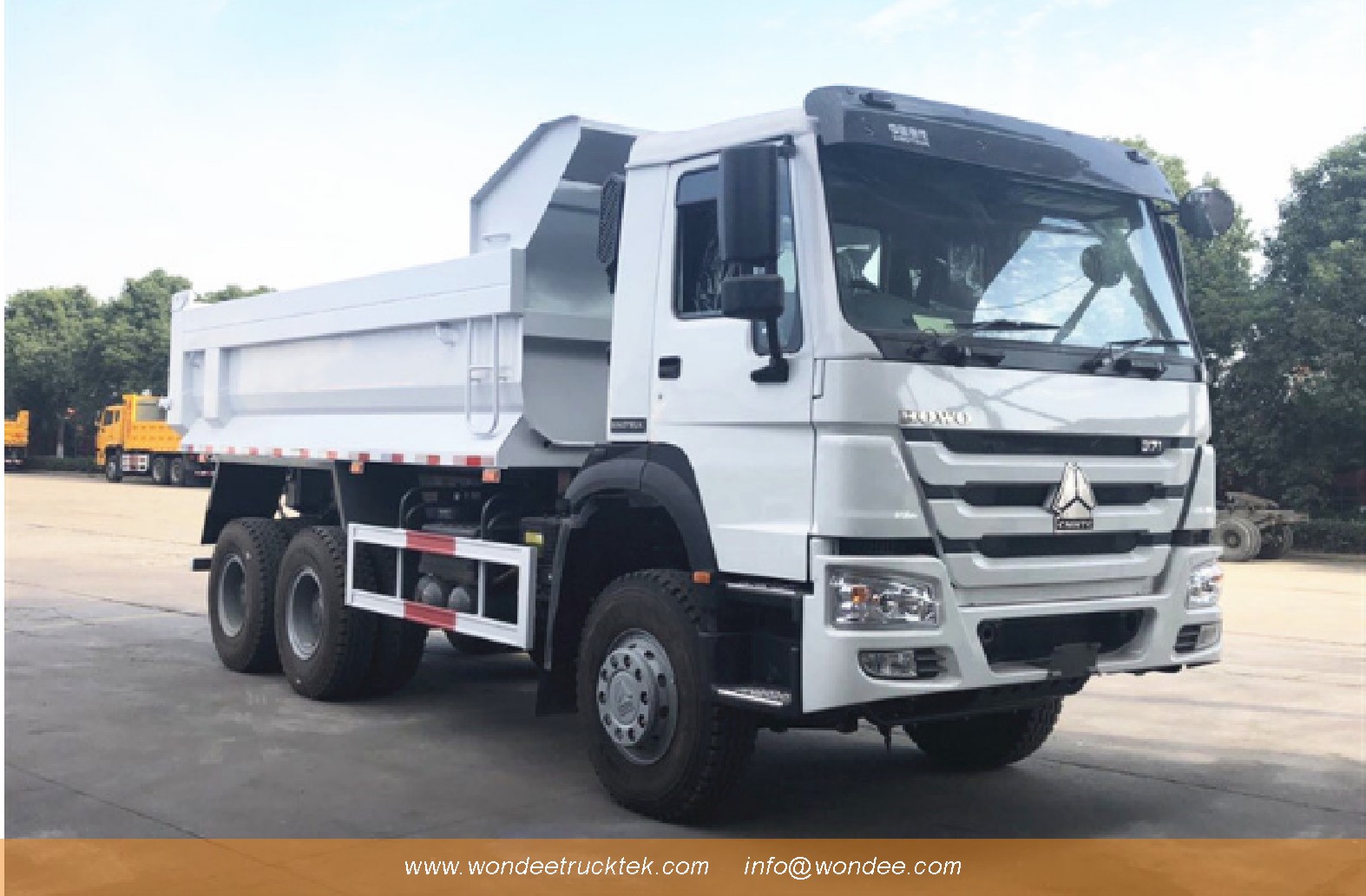

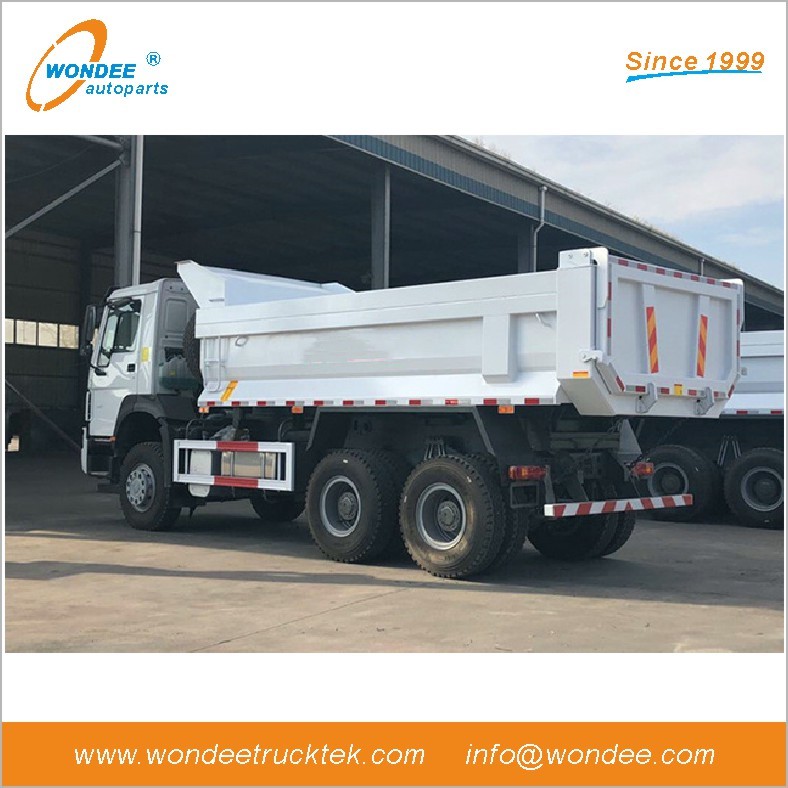

SINOTRUK HOWO 6x4 U Shape Dump Truck with 25-30T Loading Capacity
Engine : WD615.47, 371HP Chassis model : ZZ3257N3847 Capacity : 25-30T
Product Details
Technical Specifications
Vehicle Overview
|
Make |
Sinotruk |
||||||
|
Vehicle type |
Dump truck (tipper truck) |
||||||
|
Manufacturer |
Sinotruk |
||||||
|
Country |
China |
||||||
|
Manufacturer's location |
China. |
||||||
|
Vehicle chassis |
ZZ3257N3647 |
||||||
|
# |
Engine Model |
Engine Displacement |
Engine Power |
Engine Manufacturer |
Emission |
|
|
|
1 |
WD615.69 |
9726 cc |
247 kw (336 hp) |
Sinotruk |
Euro 2 |
|
|
|
2 |
WD615.47 |
9726 cc |
273 kw (371 hp) |
Sinotruk |
Euro 2 |
|
|
|
3 |
D12.42-20 |
11596cc |
309 kw (420hp) |
Sinotruk |
Euro 2 |
|
|
|
4 |
D10.34 |
9726 cc |
249 kw (340 hp) |
Sinotruk |
Euro 3/4/5 |
|
|
|
5 |
D10.38 |
9726 cc |
276 kw (380 hp) |
Sinotruk |
Euro 3/4/5 |
|
|
|
6 |
D12.42 |
11596 cc |
309 kw (420 hp) |
Sinotruk |
Euro 3/4/5 |
|
|
|
General Engine Specifications |
|
|
Fuel |
diesel fuel |
|
Environmental standards compliance |
Euro 2/3/4/5 |
|
Overall Dimensions of the Chinese dump truck |
|||
|
Overall length (mm) |
8150,8215 |
||
|
Overall width (mm) |
2500 |
||
|
Overall height (mm) |
3450/3170 |
||
|
Cargo Body Dimensions |
|||
|
Cargo body length (mm) |
5400/5600 |
||
|
Cargo body width (mm) |
1200/1500/customization |
||
|
Cargo body height (mm) |
2300 |
||
|
Wheel Base and Track |
|||
|
Wheelbase (mm) |
3625+1350 |
||
|
Front track (mm) |
2022, 2041 |
||
|
Rear track (mm) |
1830/1830 |
||
|
Front/rear overhang (mm) |
1500/1670,1500/1740 |
||
|
Angle of approach/departure (deg.) |
19/26 |
||
|
Tires and Wheels |
|||
|
Number of axles |
3 |
||
|
Number of tires |
10+1 |
||
|
Tires dimension |
11.00R20, 12.00R20, 12R22.5, 13R22.5, 12.00R24 |
||
|
Other Specifications |
|||
|
Max. speed |
80 |
||
|
ABS |
Optional |
||
|
Cab seating capacity |
2 |
||
|
Steering |
ZF power steering, model ZF8118, hydraulic steering with power assistance |
||
|
Transmission |
HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
||
|
Front Axle |
HF9, 1x9000 KGS Steering with double T-cross section beam |
||
|
Rear Axle |
HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:5.73, 4.8 is optional. |
||
|
Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
||
|
Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake ABS:optional |
||
|
Leaf springs numbers |
Front/Rear: 10 / 12 |
||
