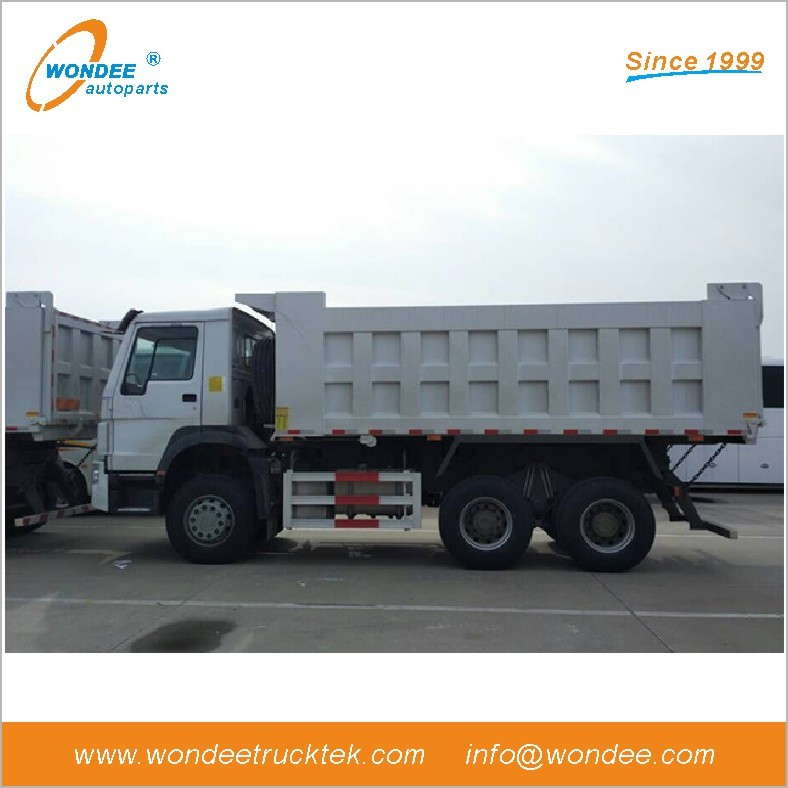

SINOTRUK HOWO 6x4 Dump Truck with 25-30T Loading Capacity
Engine : WD615.47, 371HP Chassis model : ZZ3257N3847 Capacity : 25-30T
Product Details
Supply Ability
Supply Ability: 300 Unit/Units per Month
Packaging & Delivery
Packaging Details: naked packing,shipment by RORO or bulk vessel
Port: main port in China
Lead Time:
|
Quantity(Units) |
1 - 100 |
>100 |
|
Est. Time(day) |
35 |
To be negotiated |
Specification
|
Model |
ZZ3257N3847A |
|
Drive Type |
6x4 |
|
Engine |
WD615.47 , 371HP( Euro II) |
|
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine |
|
|
Displacement : 9.726L |
|
|
Cabin |
HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) |
|
Transmission |
HW19710(10 forwards & 2 reverses) |
|
Front Axle |
1xHF9 ( 9 Tons) |
|
Driving Axle |
HC16, 16Tonsx2 |
|
Steering |
ZF8118 hydraulic steering with power assistance.(ZF8098 for RHD) |
|
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|
Rim/ Tire |
12R22.5/11.00R20/12.00R20/13R22.5/12.00R24 |
|
Wheel base |
3800+1350(mm) |
|
Overall dimension |
8475x2496x3450(mm) |
|
Cargo body |
5400x2300x1500(mm),Bottom:8mm, Side:6mm |
|
The curb weight |
12500(Kg) |
|
Gross weight |
25000 kg |
|
Max. speed |
75km/h |
|
Color |
White, red, green, golden and so on. |
Picture Shows
Competitive Advantage:
- Several kinds of cargo body structure , make it light weight , high rigidity , high loading capacity.
- Adopt the high strength steel, make it has a long service life.
- The imported hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4) Excellent appearance of cabin, safety, reliable.
5) Lower fuel consumption.
6) Strong enough engine.
7) With all kinds of truck model, which can fulfil your requirements.
8) The key parts adopt the world's top technology products.
9) Based on strong technical support and top level technology make the trucks with high quality and more reliable.
10) Competitive price, cost-effective.
11) Quick and efficient spare parts supply bring you more convenient.
12) Fast delivery time, we can arrange production according to your needs exactly and quickly.
Batch export of vehicles
Ocean Shipping
The main products include semi trailers, leaf springs , spring steel flat bar, mechanical suspension, air suspension, bogie suspension, air bag, semi trailer axle, landing gear, brake drum, brake shoe, brake lining, mudguard, slack adjuster, air tank, coupling, emergency relay valve, brake hose, turntable, wheel rim, bolts, fifth wheel, king pin, air chamber, twist lock, jack, drawbar and so on.
