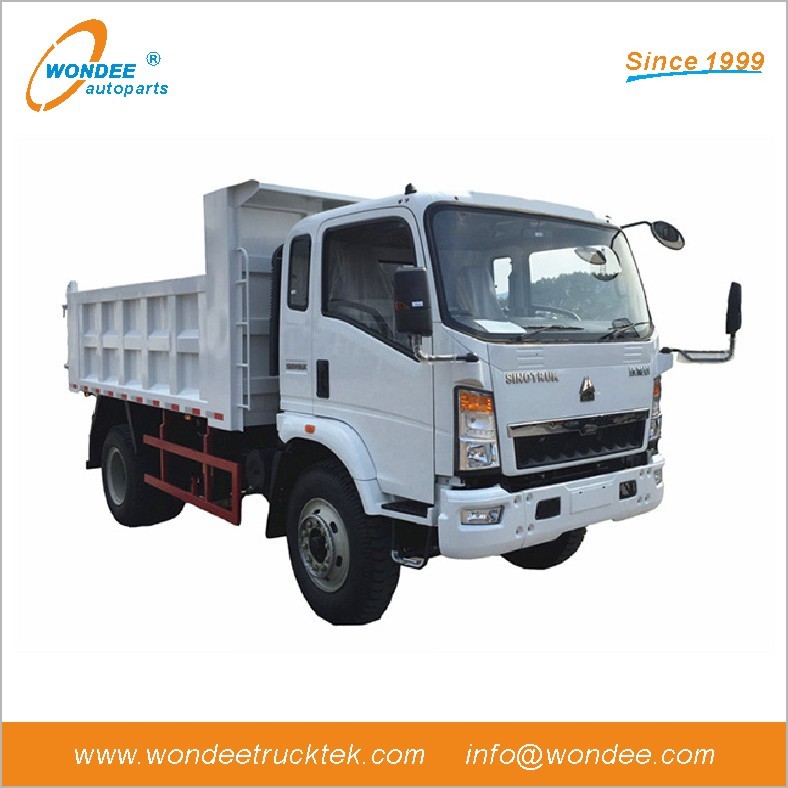

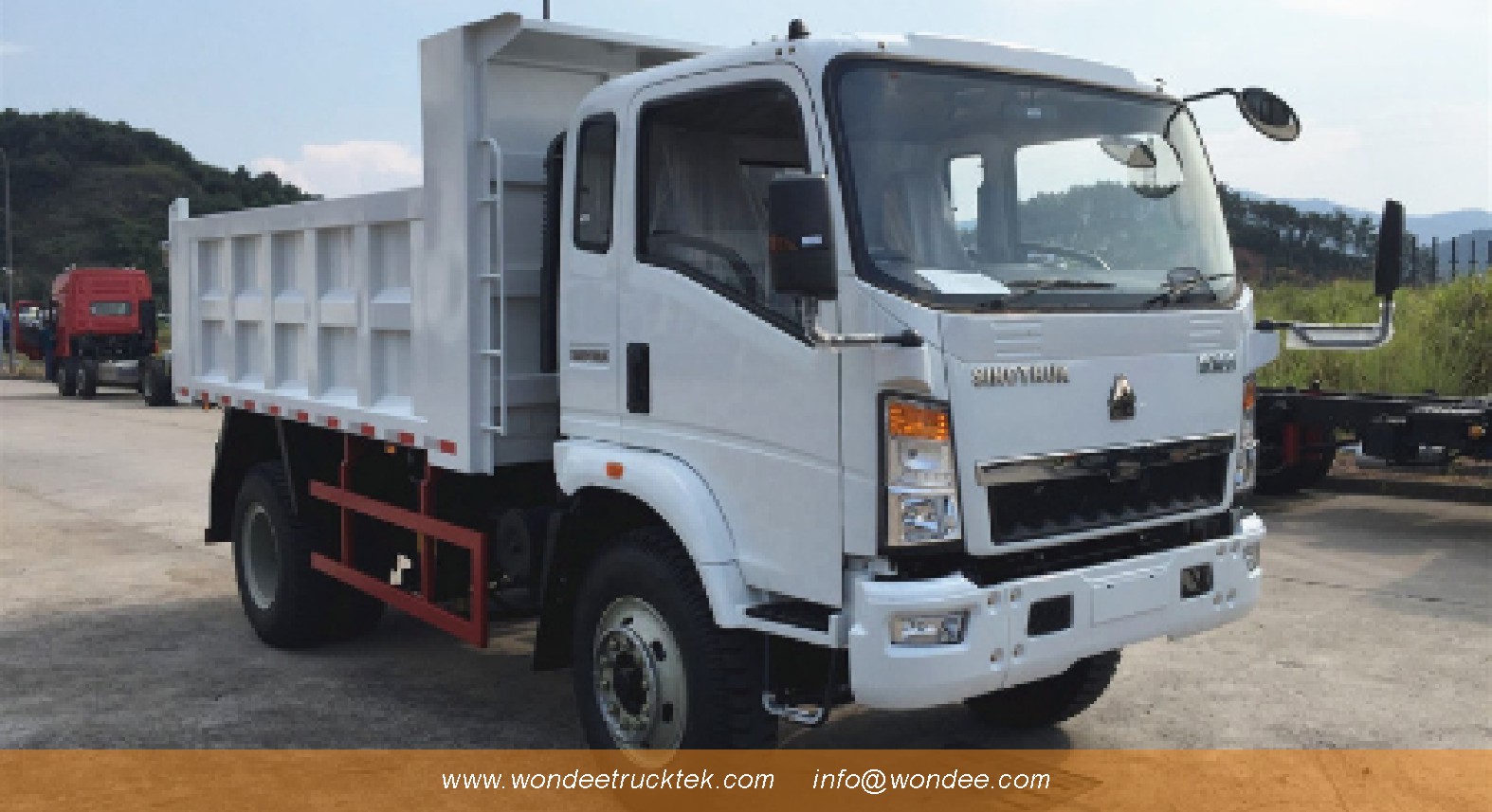

SINOTRUK HOWO 4x2 Light Duty Dump truck with 5T Loading Capacity
Engine : 129hp Chassis model : ZZ3047E3415D143 Capacity : 5T
Product Details
Vehicle Overview
|
Make |
Sinotruk Howo |
||||
|
Vehicle model |
ZZ3047E3415D143 |
||||
|
Vehicle type |
Dump truck (tipper truck) |
||||
|
Manufacturer |
Sinotruk |
||||
|
Country |
China |
||||
|
Manufacturer's location |
China. |
||||
|
Vehicle chassis |
ZZ3047E3415D143 |
||||
|
# |
Engine Model |
Engine Displacement |
Engine Power |
Engine Manufacturer |
|
|
1 |
YN38CRD1 |
3760 cc |
95 kW (129 hp) |
Kunming Yunnei Power Co., Ltd. |
|
|
General Engine Specifications |
|||
|
Fuel |
diesel fuel |
||
|
Environmental standards compliance |
Euro IV |
||
|
Overall Dimensions of the Chinese dump truck |
|||
|
Overall length (mm) |
5995 |
||
|
Overall width (mm) |
2250 |
||
|
Overall height (mm) |
2450 |
||
|
Cargo Body Dimensions |
|||
|
Cargo body length (mm) |
4150/3850 |
||
|
Cargo body width (mm) |
500/800 |
||
|
Cargo body height (mm) |
2050 |
||
|
Weights |
|||
|
Capacity (kg) |
4995 |
||
|
Curb weight of the Chinese dump truck (kg) |
2600 |
||
|
Axle load distribution (kg) |
1750/2540 |
||
|
Wheel Base and Track |
|||
|
Wheelbase (mm) |
3360 |
||
|
Front track (mm) |
1780, 1805 |
||
|
Rear track (mm) |
1605 |
||
|
Front and Rear Overhang |
|||
|
Front overhang (mm) |
1180 |
||
|
Rear overhang (mm) |
1455 |
||
|
Angle of Approach and Departure |
|||
|
Angle of approach (deg.) |
20 |
||
|
Angle of departure (deg.) |
18 |
||
|
Tires and Wheels |
|||
|
Number of axles |
2 |
||
|
Number of tires |
6+1 |
||
|
Tires dimension |
8.25R16 |
||
|
Other Specifications |
|||
|
Max. speed |
90 |
||
|
ABS |
have |
||
|
Cab seating capacity |
3 |
||
|
Leaf springs |
11 / 9+7 |
||
The main products include semi trailers, leaf springs , spring steel flat bar, mechanical suspension, air suspension, bogie suspension, air bag, semi trailer axle, landing gear, brake drum, brake shoe, brake lining, mudguard, slack adjuster, air tank, coupling, emergency relay valve, brake hose, turntable, wheel rim, bolts, fifth wheel, king pin, air chamber, twist lock, jack, drawbar and so on.
